EVOLUTION “REVO MAX” Performance Heads – BIG Bore, Black Coated

Description

***UV- and Heat-Resistant Black Anodized parts.***

***SPECIAL ORDER ITEM, please allow 3-4 weeks to ship***

• “REVO MAX” Performance Heads – Big Bore Billet Aluminum (6061-T6) Heads for the Harley-Davidson™ EVOLUTION models (3-5/8″ and larger bore dia).
• Top-breathing (OEM venting ports location)
• Designed to match big-bore flat-top pistons (not supplied) – including all available overbore sizes.

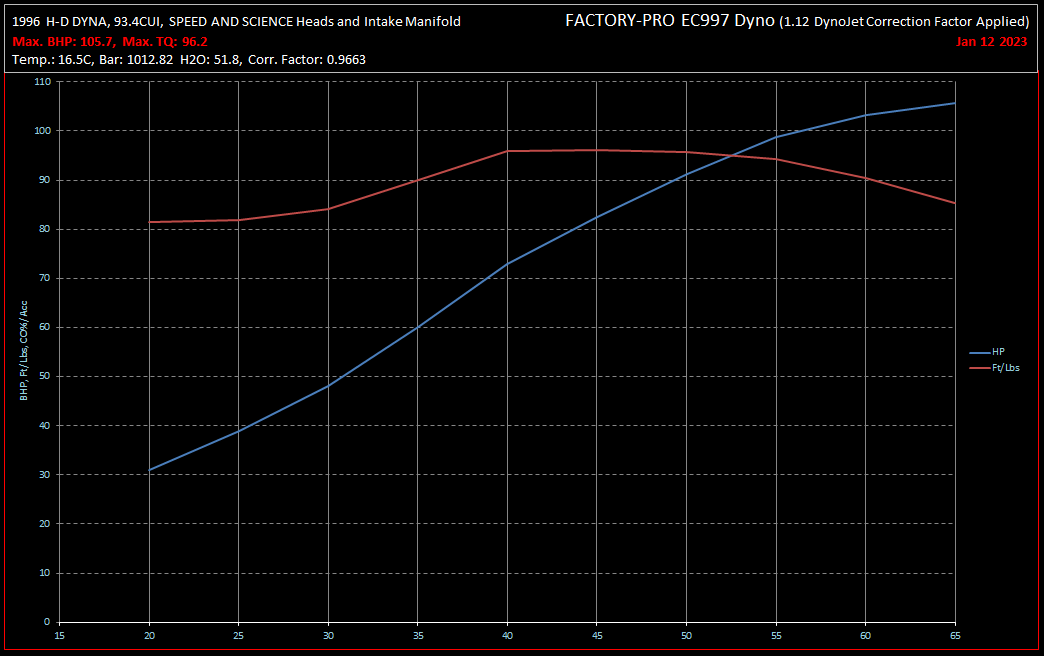

• This headset achieves very strong torque / power curves (in excess of 100HP, with proper setup/tuning) that peaks exactly where needed, providing you with the fantastic passing power, yet not straining when cruising at your leisure.
• Our product is user-friendly and easy to service down the road also. No special order pistons, valves, guides, fasteners, etc. to worry about.

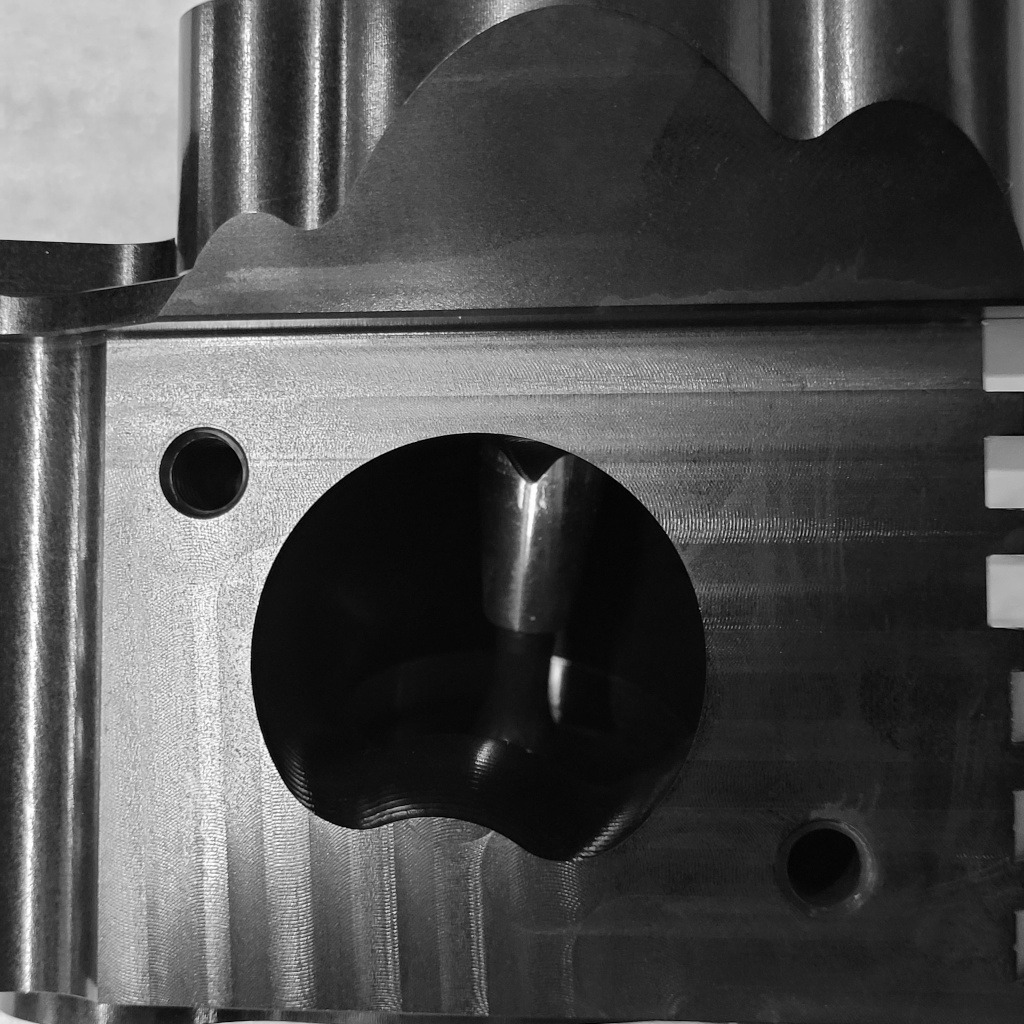

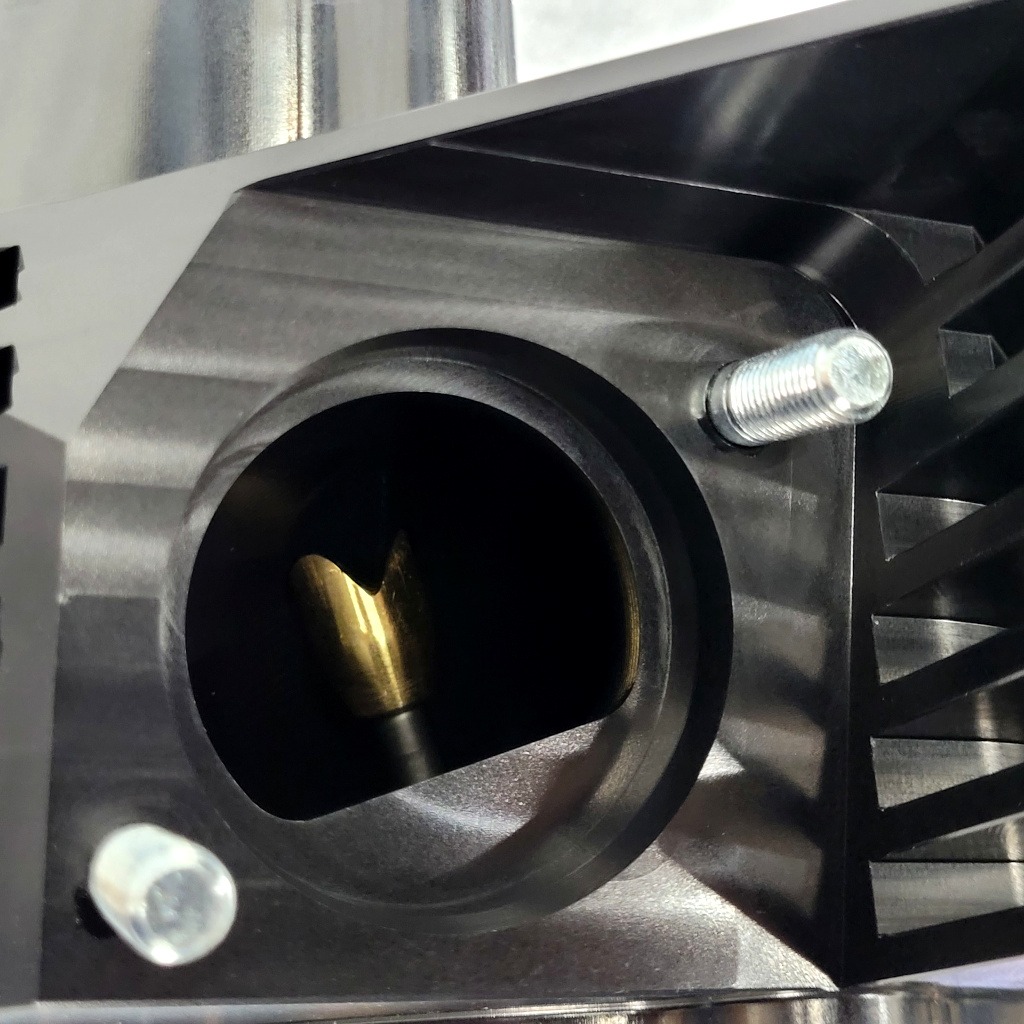

• Fast, very efficient ports designed to make peak power/torque within the useful RPM range. Your bike will pull hard from the get-go all the way up to the redline. The longevity and fuel mileage won’t suffer either.

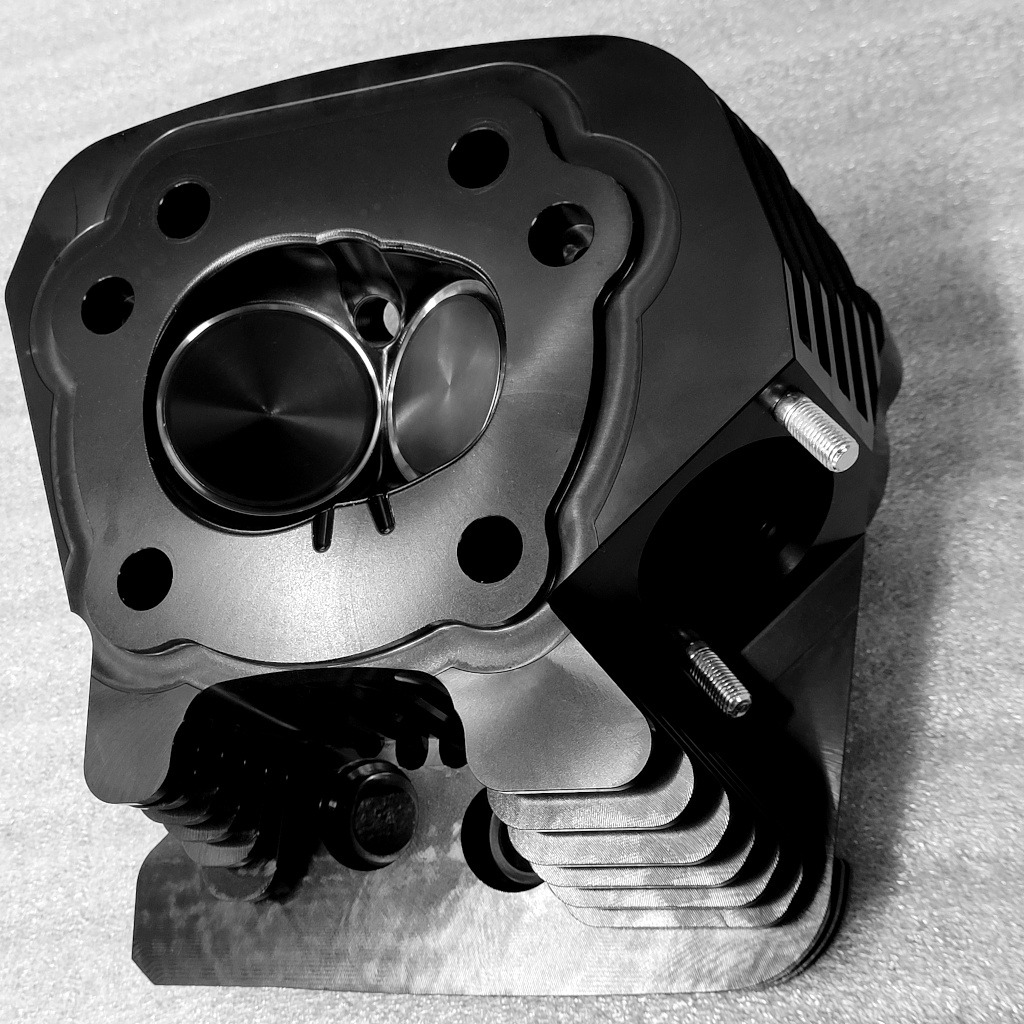

• Proprietary, super-fast design of the 83CC combustion chamber yields 9.45:1 @ 88CUI, 10:1 @ 94CUI, etc. calculated compression ratio with flat pistons.

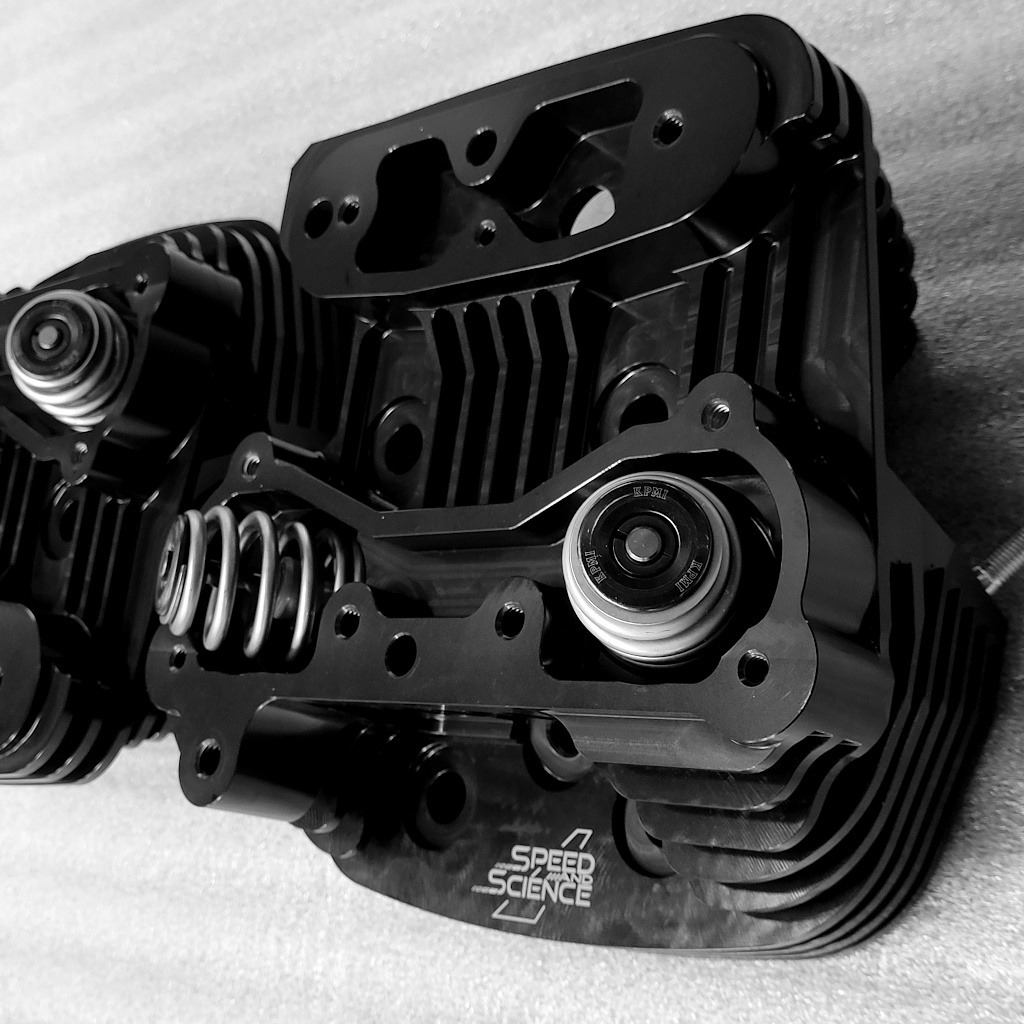

• Valvetrain (AV&V and/or KPMI) components accept up to .635” valve lift, with almost .200” lift before valve-to-valve contact. Using tall camshafts may require an additional machining to provide necessary clearances.
• Increased cooling area drops the head’s operating temperature up to 35F.
• ***The Intake and Exhaust ports surface finish is intentional.
• Warranty details and conditions are listed in the Installation Manuals ( Manuals download page )
